• Compact and versatile design

• Installs in seconds

• Skims hard-to-access or enclosed sumps

• Rated at 1 quart per hour

• Skims underneath conveyors

• Skims across elongated surface areas

• Skims oil spills

• Industrial-grade oil pick up tubing

• Ceramic scraper wipes tube clean

• Ceramic scraper lasts forever

• Weighted tube keeps from walking

• Reach from 8 inches to 8 feet

• Large discharge port eliminates clogging

• Continuous-duty, fan-cooled motor

• One year warranty

• The Sideways Skimmer™



Part Number	Rated Capacity	Motor
ZVA8-08	1 liter / hour	100-120v, 60Hz, 28 rpm
ZVA8-08E	1 liter / hour	208/220/240v, 50 Hz, 23/28 rpm
ZVA8.2-08	250 ml / hour	110v, 60Hz, 7 rpm



Notations

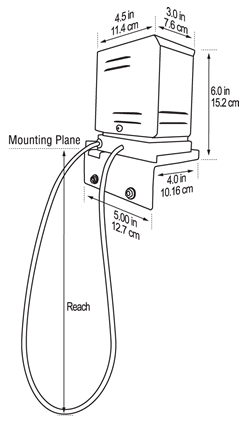

• All ZVA units with the -08 suffix have an 8 inch reach (discharge from mounting point to tube end). Longer reaches are also available up to 95 inches in 3 inch increments. ZVA requires access of 1/2 inch by 3 inches either horizontally or vertically. Maximum temperature for the tubing is ambient (no more than 90°F or 30°C).

​

• 220v, 50 Hz models available by adding "E" to the end of the part number
